FRP Railing
JK Technic resin railings protect users while offering high chemical and thermal resistance.
In order to keep users safe, JK Technic offers railing profiles made in resin. Such railings are mainly used to protect industrial walkways and are fitted with a hand rail, one or more intermediate rails and vertical posts.
RANGE AND ACCESSORIES
Colour of the entire JK Technic FRP Railing range: RAL 7035 grey.
POST
Length: 6000 mm
Dimensions (W x H x thickness.) :
50 x 50 x 7.5mm
HAND RAIL
L 6000 x W 58 x H 62 mm
UNDER RAIL
L 6000 mm
Inner Ø 22 mm
Outer Ø 32 mm
BASE PANEL
L 6000 x W 100 mm
90° BEND FITTING
FOR HAND RAIL
L 150 x 150 mm
W 49 x h 40 mm
90° BEND FITTING
FOR UNDER RAIL
L 105 x 105 mm
Inner Ø 21,7 mm
Outer Ø 30 mm
ARTICULATED FITTING
FOR HAND RAIL
L 50 x W 50 x H 143 mm
FITTING FOR
BASE PANEL
L 100 x W 50 x H 50 mm
thickness 6 mm
FLOOR BASE
Fastened to the floor
L 153 x W 126 x H 133 mm
WALL MOUNT
Fastened to the wall
L 170 x W 60 x H 120 mm
PLUG FOR
HAND RAIL
L 6 x W 60 x H 63 mm
PLUG FOR
UNDER RAIL
L 14 mm
Inner Ø 22 mm
Outer Ø 35 mm

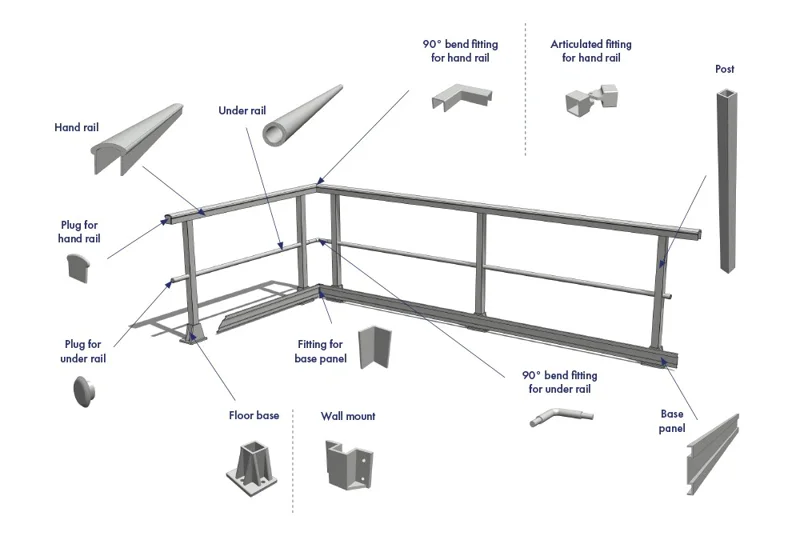

ASSEMBLY

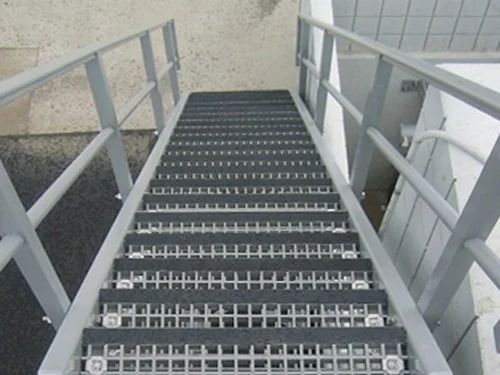

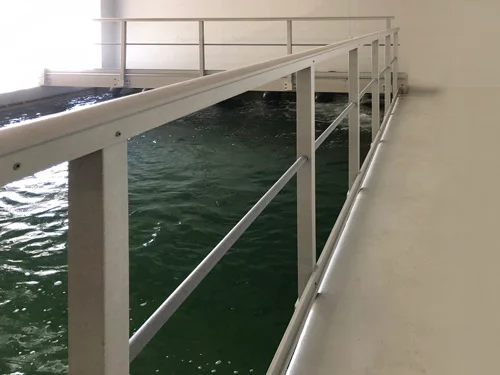

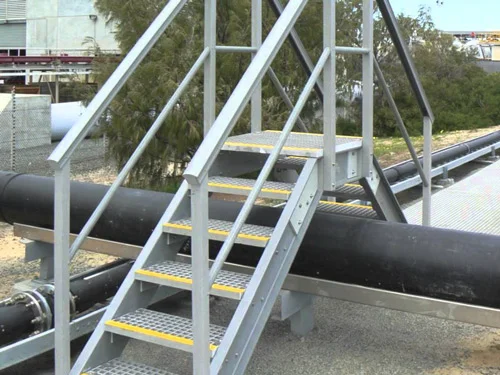

EXAMPLES OF ACHIEVEMENTS
20 000 customers in Europe, many references.
