Safety grids
Safety grids for functional or decorative use are suitable for any environment. Due to the wide range of varieties on offer, they guarantee a solution in terms of their great stability, grip, durability and drainage qualities as well as their use as a means of passage or the range of lighting options.
Safety grids
PS-CRANT
PS-CRANT safety grid stand out for its anti-slip serrated surface qualities. It is very well suited to the automotive, construction and industrial sector.
Maximum lengths:
- Untreated or galvanised steel: 6,000 mm.
- Untreated or pickled 304 or 316 stainless steel: 2,000 mm.
- Aluminium: 6,000 mm.
Standard widths:
For the full range of materials and finishes: 120 mm / 180 mm / 240 mm / 300 mm / 360 mm / 420 mm / 480 mm.
Standard height:
For the full range of materials and finishes: 40 mm / 50 mm / 75 mm.
PS-PERF
PS-PERF safety grid has excellent grip due to the perforations at the top which allow liquid to drain through.
Maximum lengths:
- Untreated or galvanised steel: 6,000 mm.
- Untreated or pickled 304 or 316 stainless steel: 2,000 mm.
- Aluminium: 6,000 mm.
Standard widths:
For the full range of materials and finishes: 150 mm / 200 mm / 250 mm / 300 mm.
Standard height:
For the full range of materials and finishes: 30 mm / 40 mm / 50 mm / 75 mm.
PS-FERM
PS-FERM safety grid is perfect for areas to which access is restricted and where traffic safety must be guaranteed (this is the only product in our range which has no openings to see through).
Maximum lengths:
- Untreated or galvanised steel: 6,000 mm.
- Untreated or pickled 304 or 316 stainless steel: 2,000 mm.
- Aluminium: 6,000 mm.
Standard widths:
For the full range of materials and finishes: 150 mm / 200 mm / 300 mm / 400 mm.
Standard height:
For the full range of materials and finishes: 40 mm / 50 mm / 75 mm.
PS-OVA
PS-OVA safety grid has a very high load-bearing capacity. This kind of grid is often used for facade cladding.
Maximum lengths:
- Untreated or galvanised steel: 6,000 mm.
- Untreated or pickled 304 or 316 stainless steel: 2,000 mm.
- Aluminium: 6,000 mm.
Standard widths:
For the full range of materials and finishes: 150 mm / 200 mm / 250 mm / 300 mm.
Standard height:
For the full range of materials and finishes: 30 mm / 40 mm / 50 mm / 75 mm.
PS-OFF
PS-OFF safety grid has the same advantages as PS-PERF safety grid. It grips extremely well due to the perforations stamped at the top end which allow liquid to drain through.
Maximum lengths:
- Untreated or galvanised steel: 6,000 mm.
- Untreated or pickled 304 or 316 stainless steel: 2,000 mm.
- Aluminium: 4,000 mm.
Standard widths:
For the full range of materials and finishes: 150 mm / 200 mm / 250 mm / 300 mm.
Standard height:
For the full range of materials and finishes: 40 mm / 50 mm / 75 mm.

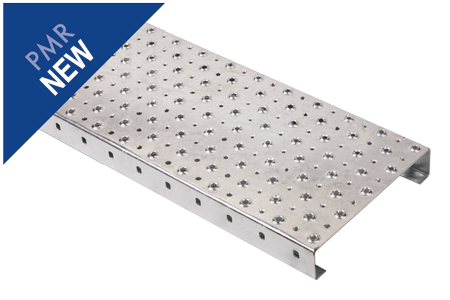

PS-PMR
With its 8 mm diameter perforations, the PS-PMR safety grid is specially designed for access by people with reduced mobility. In addition to the dimensions, numerous options are available depending on the configuration of the installation site.
Maximum lengths:
- Raw steel or galvanised: 6000 mm.
- Aluminium : 6000 mm.
Standard widths:
200 mm / 250 mm / 300 mm. Maximum width: 330 mm.
Standard heights:
50 mm. Possible up to 75 mm.
Stair treads
JK Technic offers a wide range of stairs in safety grids with the following stamps:
PS-CRANT
In stock
PS-PERF
In stock
PS-OFF
On demand
PS-OVA
On demand
PS-FERM
On demand
PS-PMR
On Stock (dimensions 800x330 / 900x330 / 1000x330 / 1200x330 / 1400x330 mm)
Dimensions for drill holes in stair risers
Height / Tickness : 50 / 2 mm.
Dimensions : 800 x 300 mm / 1000 x 300 mm / 1200 x 300 mm.
|
Tread width |
from 150 to 159 |
from 160 to 169 |
from 170 to 179 |
from 180 to 189 |
from 190 to 199 |
from 200 to 249 |
from 250 to 279 |
from 280 to 309 |
from 310 to 339 |
from 340 to 369 |
| Dimensions d in mm |
70 | 80 | 90 | 100 | 110 | 120 | 150 | 180 | 210 | 240 |
Other dimensions for drill holes in stair risers on request.
PS-PMR step kit
- Ready for use step kit, made up of left and right sides and fasteners
- Time saving
- The length of our grids can be adjusted easily (by the customer) to the required dimensions
- Step kit that adapt to all types of stringer
- Available in two heights (50 and 75 mm)
Screw head: top view
Grid with contrasting nosing: the nosing may be painted black or yellow
Shipment within 24/48 hours: grids in stock and immediately available:
- 3996 x 330, 50 mm high, 2 mm thick (max. recommended step
length: 1100 mm)
- 4200 x 330, 75 mm high, 2 mm thick (max. recommended step
length: 1600 mm)
Characteristcs
Method of manufacture
Manufactured using techniques that ensures a consistent production quality, JK Technic safety grids meet current safety standards. JK Technic safety grids are manufactured with tolerances in accordance with the RAL-GZ 639 standards.
Materials
- S235JR steel as per EN 10025 standards.
- 304 (1.4301) or 316Ti (1.4571) stainless steel.
- AlMg3 aluminium.
Surface finishes
- Untreated or galvanised steel.
- Untreated or pickled stainless steel.
- Untreated, pickled or anodized aluminium.
Thicknesses
- Untreated or galvanised steel: 1.5 mm / 2 mm / 2.5 mm.
- Untreated or pickled 304 or 316 stainless steel: 1.5 mm / 2 mm.
- Aluminium: 2 mm / 2.5 mm / 3 mm.
